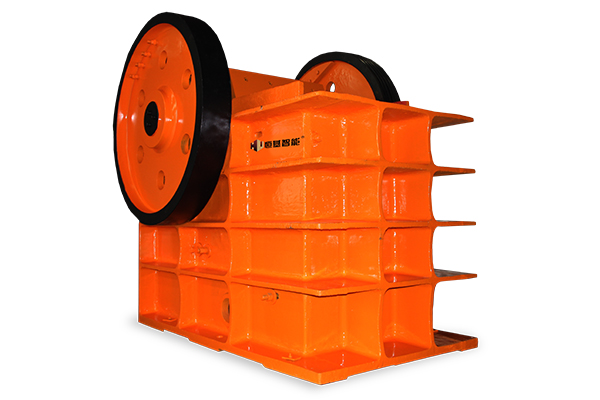

PE Jaw Crusher
PE Jaw Crusher is a new crushing machine developed by HENGJI, the jaw crusher manufacturer, after the release of traditional jaw crusher. This jaw crusher is a perfect combination of modern science and technology and the production practice, which can better satisfy the automatic production demands of vast customers.
Input Size: 0-930mm
Capacity: 12-900T/H
Material: Granite, marble, basalt, limestone, quartz, pebble, copper ore, iron ore
Working Principle
Firstly, the motor drives belt and pulley to make the movable jaw move back and forth, up and down around the eccentric shaft. When the movable jaw pushes the movable jaw plate towards the fixed jaw plate, materials get crushed. When movable jaw and plate move backwards under the action of the eccentric shaft and spring, the materials crushed before would be discharged from the port under the jaw plate. As the motor works continuously, the movable jaw can crush or discharge materials periodically, so that volume production can be achieved.
Product Parameters
| 型 號Model |
進料口尺寸 Feed opening (mm) |
最大進料粒度 (mm) Maximum feeding size (mm) |
出料口調整范圍 (mm) Range of discharge opening(mm) |
處理能力 (t/h) Capacity (t/h) |
偏心軸轉速 (r/min) Eccentric shaft speed(r/min) |
電機功率 (kw) Power (kw) |
重量 Weight( t ) |
| PE400×600 | 400×600 | 350 | 40-100 | 20-60 | 275 | 30 | 6.5 |
| PE500×750 | 500×750 | 425 | 50-120 | 45-100 | 275 | 55 | 10.1 |
| PE600×900 | 600×900 | 500 | 60-160 | 180-150 | 250 | 55-75 | 15.5 |
| PE750×1060 | 750×1200 | 630 | 100-220 | 220-320 | 250 | 110 | 28 |
| PE900×1200 | 900×1200 | 750 | 100-220 | 300-700 | 200 | 160 | 43 |
| PE1200×1500 | 1200×1500 | 1000 | 150-230 | 500-1000 | 180 | 250 | 85 |
Note:
1.The bulk specific weight is calculated by 1.6t/m³. When the width of the feeding port is above 600mm, it is a large-scale machine while when the width ranges from 300 to 600mm, it is a medium-sized machine.
2.Product pictures and parameters about models, data, performances and specifications on this website are for reference only. There is a chance that HENGJI may make changes on above-mentioned information. For specific messages, please refer to the real objects and user manuals. Without special instructions, HENGJI keeps the right to explain all data involved in this website.
